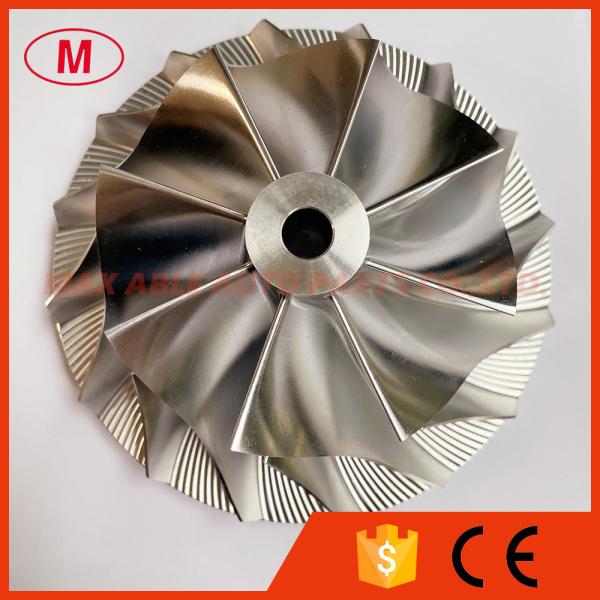

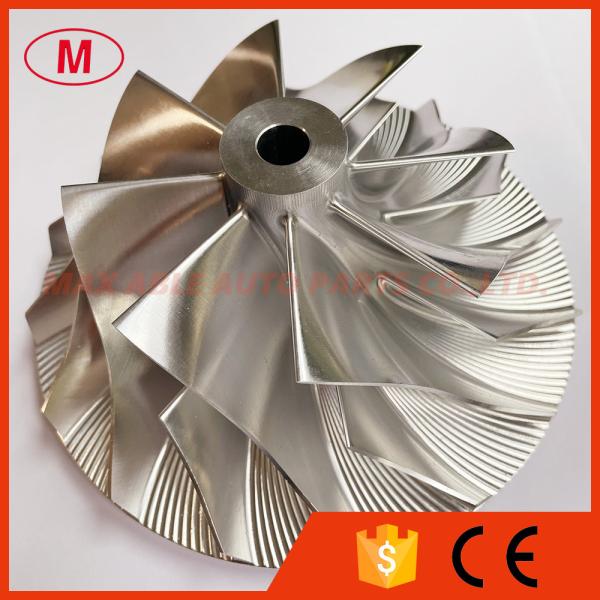

HX82 3593926 100.00/152.04mm 8+8 blades Turbo milling/aluminum 2618 /billet compressor wheel

Product Categories
Max Able Auto Parts Co.,Ltd.
Contact Now

HX82 3593926 100.00/152.04mm 8+8 blades Turbo milling/aluminum 2618 /billet compressor wheel

Brand Name : NO

Model Number : HX82

Place of Origin : CHINA

MOQ : 1PC

Payment Terms : TT ,western union ,paypal

Supply Ability : 1000

Delivery Time : 3-7 days

Packaging Details : neutral packing

Contact Now

1. MODEL:HX82 Forward

2.HX82 3593926 100.00/152.04mm 8+8 blades Turbo milling/aluminum 2618 /billet compressor wheel
3.Size:

Nose diameter:26.98mm

Inducer:100.00mm

Exducer:152.04mm

Tip height:9.92mm

Superback:10.08mm

Overall height:68.60mm

Bore size:11.12mm

Bore type:through

Trailing angle:60 degree

Blade height:50.48mm

Cutback:0.0mm

SP height angle:-1.50

Splitter height:23.20mm

8+8 blades

Forward rotation

Tapered tip angle:0 degree

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.Any questions please send email to me

We can produce as your requirement.

All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719
