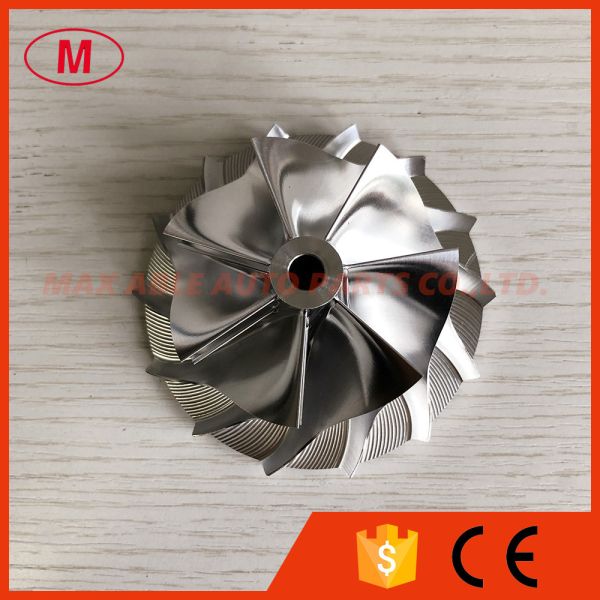

TD05H reverse 55.50/76.13mm 7+7 blades tapered tip angle:30 degree Turbo milling/aluminum 2618/billet compressor wheel

1. MODEL:TD05H reverse

2. TD05H reverse 55.50/76.13mm 7+7 blades Turbocharger milling/aluminum 2618/billet compressor wheel

3.Size:

Nose diameter:13.52mm

Inducer:55.50mm

Exducer:76.13mm

Tapered tip exducer:80.54mm

Tip height:4.82mm

Superback:2.90mm

Overall height:35.55mm

Bore:6.50mm

bore type:through

Trailing angle:65

Blade height:31.67mm

Cutback:-2.5

Splitter height:20.10mm

SP height angle:-9.50

7 long 7 short

reverse rotation

Tapered tip angle: 30 degree

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.Any questions please send email to me

We can produce as your requirement.

All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

TD05H reverse 55.50/76.13mm 7+7 blades tapered tip angle:30 degree Turbo milling/aluminum 2618/billet compressor wheel Images
