GT15-25 32.94/49.00mm 6+6 blades 434812-0001/2 Turbo Aluminum 2618/milling/billet compressor wheel for 713673-0004

1. MODEL:GT15-25 forward

2.GT15-25 433256-0003 37.91/49.00mm 6+6 blades high performance turbo billet/milling/aluminum 2618 compressor wheel for 466501/471189/700917/708337

3.Size:

Nose diameter:11.76mm

inducer:37.91mm

Exduder:49.00mm

Tapered tip exducer:53.52mm

Tip height:4.92mm

Superback:2.40mm

Overall height:24.89mm

bore size :5.08mm

bore type:through

Trailing Angle:70 degree

Cutback:0.00

SP height angle:-7.00

Splitter height:13.55mm

Blade height:19.02mm

6+6 blades

Forward rotation

Tapered tip angle:30 degree

Fit for OE compressor housing

Application:

466501

471189

700917

708337

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

All the billet compressor wheels have been balanced.

The more models we also have.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

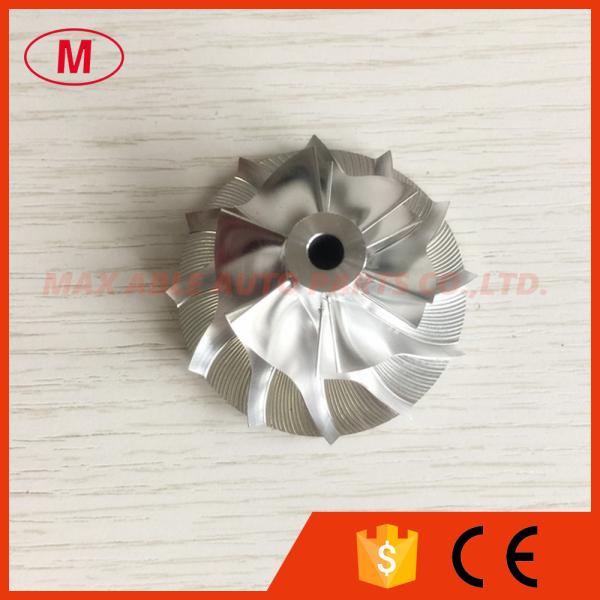

GT15-25 32.94/49.00mm 6+6 blades 434812-0001/2 Turbo Aluminum 2618/milling/billet compressor wheel for 713673-0004 Images
