HX40 54.00/83.03mm 8+8 blades 3599646 high performance Turbo milling/aluminum 2618/billet compressor wheel for 3532211

Product Categories
Max Able Auto Parts Co.,Ltd.
Contact Now

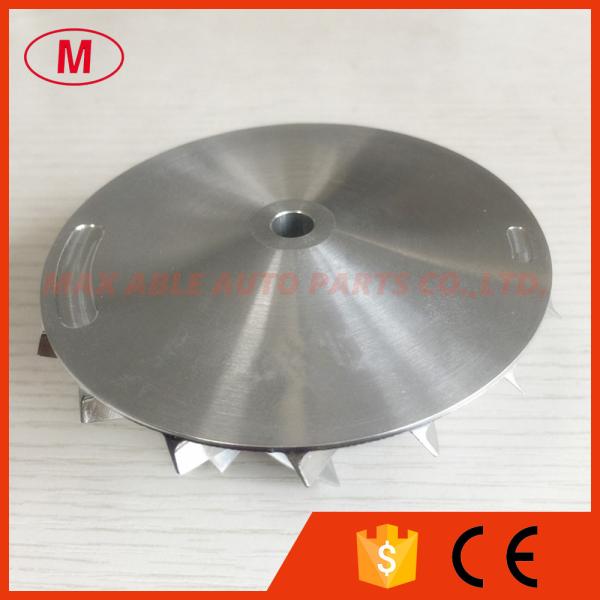

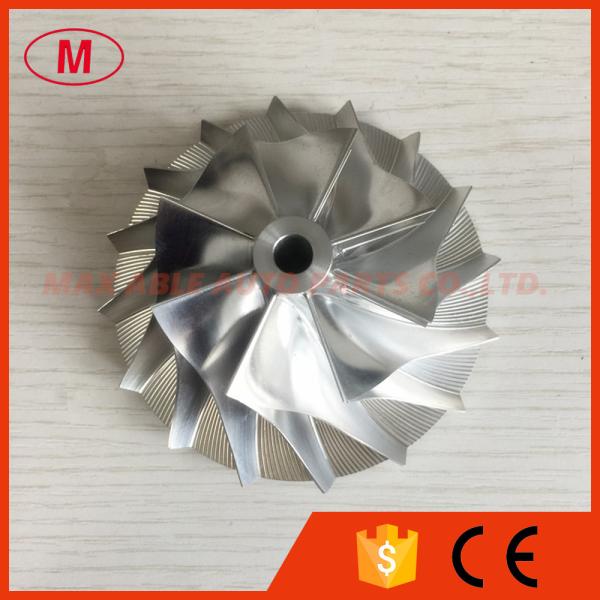

HX40 54.00/83.03mm 8+8 blades 3599646 high performance Turbo milling/aluminum 2618/billet compressor wheel for 3532211

  • 1
  • 2
  • 3

Brand Name : NO

Model Number : HX40

Certification : ISO

MOQ : 1PC

Price : DISCUSS

Payment Terms : T/T, Western Union, MoneyGram,PAYPAL

Supply Ability : 1000PCS

Delivery Time : 3-7 DAYS

Packaging Details : neutral packing

Contact Now

1.Model:HX40 forward
2.HX40 54.00/83.03mm 3599646 8+8 blades high performance turbo Billet/milling/aluminum 2618 compressor wheel for 3532211/3535666/3536050/3533121/3533563/3534023/3528920/3528894/3531457/3531697/3531456/3531040/3528237/3534241/3533595/3528087/3535088/3532296/3537551/3533741
3.Size:
Nose diameter:14.11mm
Inducer:54.00mm
exducer:83.03mm
Tapered tip exducer:88.01mm
Tip height:5.32mm
Superback:4.00mm
bore size :7.00mm
bore type:through
Overall height:38.85mm
Cutback:3.0mm
Trailing Angle:60 degree
SP Height angle:-5.00
Blades height:32.92mm
Splitter height:19.35mm
8+8 blades forward
Fit for OE compressor housing
Tapered tip Angle:30 degree
Application:
3532211
3535666
3536050
3533121
3533563
3534023
3528920
3528894
3531457
3531697
3531456
3531040
3528237
3534241
3533595
3528087
3535088
3532296
3537551
3533741
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
