G30-770 57.52/71.40mm 9+0 blades point milling snake curve billet compressor wheel for 880693-5002S/880697-5008S/5009S

Brand Name : no

Model Number : G30-770

Certification : ISO

MOQ : 1PC

Price : DISCUSS

Payment Terms : T/T, Western Union, MoneyGram,PAYPAL

Supply Ability : 1000PCS

Delivery Time : 3-7 DAYS

Packaging Details : Neutral packing

Contact Now

1. MODEL:G30-770 forward

2.G30-770 57.52/71.40mm 9+0 blades point milling snake curve Billet/milling/aluminum 2618 compressor wheel for 880693-5002S / 880697-5008S / 880697-5009S/ 880697-5010S/ 880697-5011S

3.Size:

Nose diameter:13.15mm

Inducer:57.52mm

exducer:71.40mm

Tapered tip exducer:73.98mm

Tip height:7.58mm

Superback:1.75mm

bore size :6.35mm

bore type:through

Overall height:35.23mm

Cutback:6.70mm

Trailing Angle:35 degree

SP height angle:0.00

Splitter height:0.00mm

Blade height:27.60mm

9+0 blades forward

Fit for OE compressor housing

Tapered tip Angle:11.4 degree

Application:

880693-5002S / 880697-5008S / 880697-5009S/ 880697-5010S/ 880697-5011S

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement ,the minimun order is 5pcs

All the compressor wheels have been balanced.

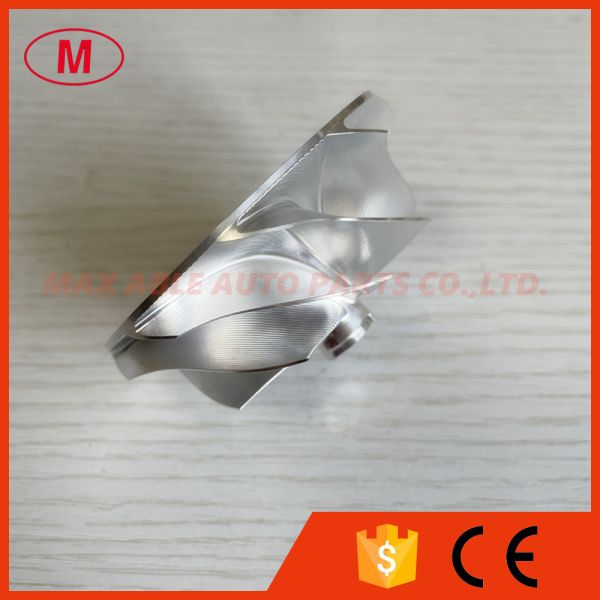

G30-770 57.52/71.40mm 9+0 blades point milling snake curve billet compressor wheel for 880693-5002S/880697-5008S/5009S
